CITROËN C3 III FACELIFT
Below you will find interactive and original diagrams for CITROËN C3 III FACELIFT.
Total Fuses
60
Most Common
5A (14)
Important: Disclaimer
FuseLayouts.com is not responsible for any malfunctions, damages, repair costs, or any other losses resulting from the use of the information and diagrams provided. All repairs and modifications are performed at your own risk. We always recommend consulting with a qualified mechanic for more serious electrical issues.
Before using the diagram, make sure it matches your exact vehicle model and production year. Diagrams may vary depending on equipment version and year.
Select Fuse Box:

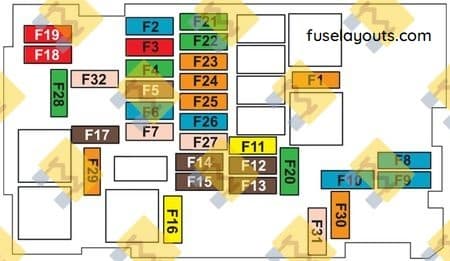

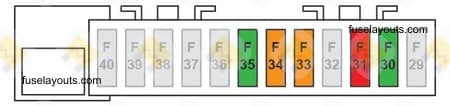

Interactive 3D Diagram
Selected Fuse
Select a fuse from the diagram or table
| No. | Amp | Circuit |
|---|---|---|
| F29 | - | Not used |
| F30 | 30A | Unknown |
| F31 | 10A | Heated door mirrors |
| F32 | - | Not used |
| F33 | 40A | Front electric window controls |
| F34 | 40A | Rear electric windows |
| F35 | 30A | Front heated seats |
| F36 | - | Not used |
| F37 | - | Not used |
| F38 | - | Not used |
| F39 | - | Not used |
| F40 | - | Not used |
Selected Fuse
Select a fuse from the diagram or table
Original Documentation & Assignments

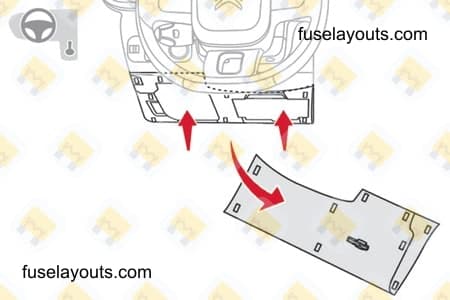

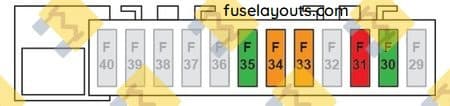

Dashboard fuses 1
Diagram

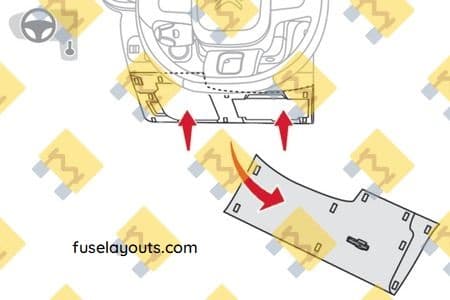

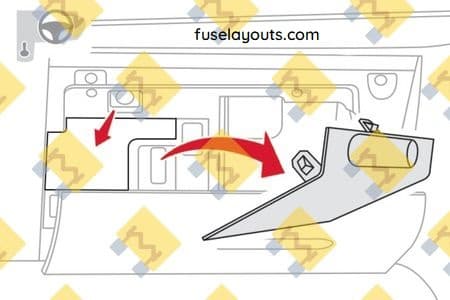

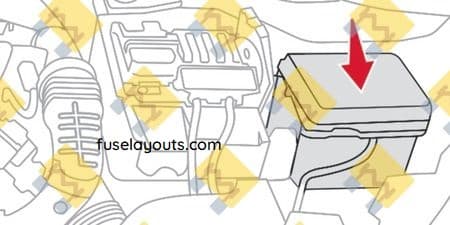

Location

Where to find
- •Unclip the cover by pulling at the top left, then right
- •Disengage the cover completely and turn it over
- •Remove the tweezers from the back of the cover
| No. | Amp | Description |
|---|---|---|
| F29 | - | Not used |
| F30 | 30A | Unknown |
| F31 | 10A | Heated door mirrors |
| F32 | - | Not used |
| F33 | 40A | Front electric window controls |
| F34 | 40A | Rear electric windows |
| F35 | 30A | Front heated seats |
| F36 | - | Not used |
| F37 | - | Not used |
| F38 | - | Not used |
| F39 | - | Not used |
| F40 | - | Not used |

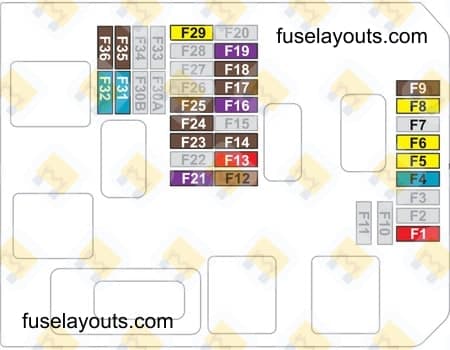

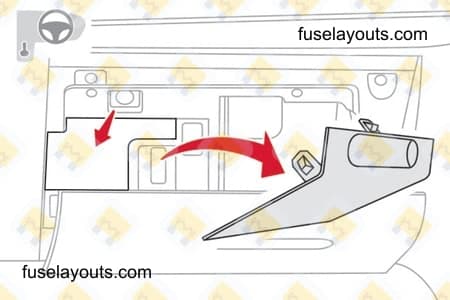

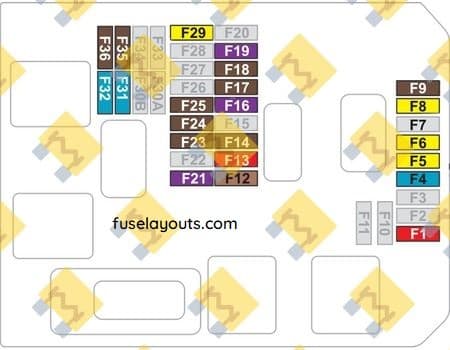

Dashboard fuses 2
Diagram

Location

Where to find
- •Open the glove box
- •Unclip the fuse boxes protection cover
- •Disengage the cover completely and turn it over
- •Remove the tweezers from the back of the cover
| No. | Amp | Description |
|---|---|---|
| F1 | 10A | Door mirror adjustment |
| F2 | - | Unknown |
| F3 | - | Unknown |
| F4 | 15A | Horn |
| F7 | - | Unknown |
| F8 | 20A | Rear wiper |
| F9 | 5A | Unknown |
| F12 | - | Unknown |
| F13 | 10A | Air conditioning |
| F14 | 5A | Alarm |
| F15 | - | Unknown |
| F16 | 3A | Unknown |
| F17 | 5A | Unknown |
| F18 | 5A | Air conditioning |
| F19 | 3A | Unknown |
| F20 | - | Unknown |
| F21 | 3A | Unknown |
| F22 | - | Unknown |
| F23 | 5A | Unknown |
| F24 | 5A | Unknown |
| F25 | 5A | Unknown |
| F26 | - | Unknown |
| F27 | - | Unknown |
| F28 | - | Unknown |
| F29 | 20A | Telematic audio system |
| F31 | 15A | Audio system (accessory) |
| F32 | 15A | Front 12 V socket |
| F33 | - | Unknown |
| F34 | - | Unknown |
| F35 | 5A | Additional heater (depending on equipment) |
| F36 | 5A | Front map reading lamp |
| F10 (+) | 30A | Door and fuel filler flap (depending on engine) locking/unlocking |
| F11 (Gnd) | 30A | Door and fuel filler flap (depending on engine) locking/unlocking |
| F30A | - | Unknown |
| F30B | - | Unknown |
| F5 (Gnd) | 20A | Front and rear screenwash pump |
| F6 (+) | 20A | Front and rear screenwash pump |

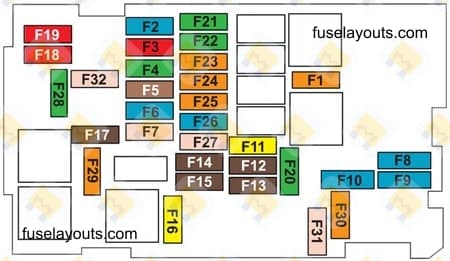

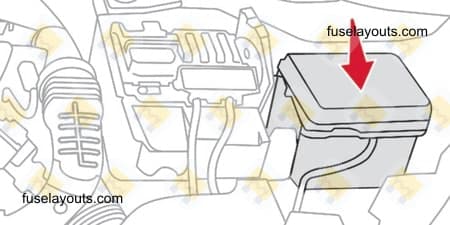

Engine compartment fuses
Diagram

Location

Where to find
- •Unclip the cover
- •Replace the fuse
- •After the operation, close the cover very carefully to ensure correct sealing of the fusebox
| No. | Amp | Description |
|---|---|---|
| F1 | 40A | Air conditioning |
| F2 | 60A | Unknown |
| F3 | 50A | Unknown |
| F4 | 30A | Unknown |
| F5 | 70A | Unknown |
| F6 | 60A | Unknown |
| F7 | 80A | Unknown |
| F8 | 15A | Unknown |
| F9 | 15A | Unknown |
| F10 | 15A | Unknown |
| F11 | 20A | Unknown |
| F12 | 5A | Unknown |
| F13 | 5A | Unknown |
| F14 | 5A | Unknown |
| F15 | 5A | Unknown |
| F16 | 20 | Front foglamp |
| F17 | 5A | Unknown |
| F18 | 10A | Right-hand main beam headlamp |
| F19 | 10A | Left-hand main beam headlamp |
| F20 | 30A | Unknown |
| F21 | 30A | Unknown |
| F22 | 30A | Unknown |
| F23 | 40A | Unknown |
| F24 | 40A | Unknown |
| F25 | 40A | Trailer attachment pre-equipment |
| F26 | 15A | Unknown |
| F27 | 25A | Unknown |
| F28 | 30A | Unknown |
| F29 | 40A | Windscreen wipers |
| F30 | 40A | Unknown |
| F31 | 80A | Unknown |
| F32 | 80A | Unknown |
