CITROËN C3 I FACELIFT
Below you will find interactive and original diagrams for CITROËN C3 I FACELIFT.
Total Fuses
26
Most Common
30A (7)
Important: Disclaimer
FuseLayouts.com is not responsible for any malfunctions, damages, repair costs, or any other losses resulting from the use of the information and diagrams provided. All repairs and modifications are performed at your own risk. We always recommend consulting with a qualified mechanic for more serious electrical issues.
Before using the diagram, make sure it matches your exact vehicle model and production year. Diagrams may vary depending on equipment version and year.
Select Fuse Box:
Interactive 3D Diagram
Selected Fuse
| No. | Amp | Circuit |
|---|---|---|
| F1 | - | Unknown |
| F3 | 5A | Airbags |
| F4 | 10A | Diagnostic socket – Particle filter additive – Clutch switch – Steering angle sensor |
| F5 | 30A | Rear window – Sun roof |
| F6 | 30A | Screen wash |
| F7 | - | Unknown |
| F8 | 20A | Digital clock – Controls at the steering wheel – Radio – Display |
| F9 | 30A | Cigar-lighter – Digital clock – Interior lamps – Vanity mirror |
| F10 | 15A | Alarm |
| F11 | 15A | Ignition switch – Diagnostic socket |
| F12 | 15A | Airbag ECU – Rain and brightness sensor |
| F13 | - | Unknown |
| F14 | 15A | Parking assistance – Instrument panel – Air conditioning – Bluetooth® telephone |
| F15 | 30A | Central locking – Deadlocking |
| F17 | 40A | Heated rear screen |
| F18 | SHUNT | CUSTOMER PARK SHUNT |
Selected Fuse
Original Documentation & Assignments

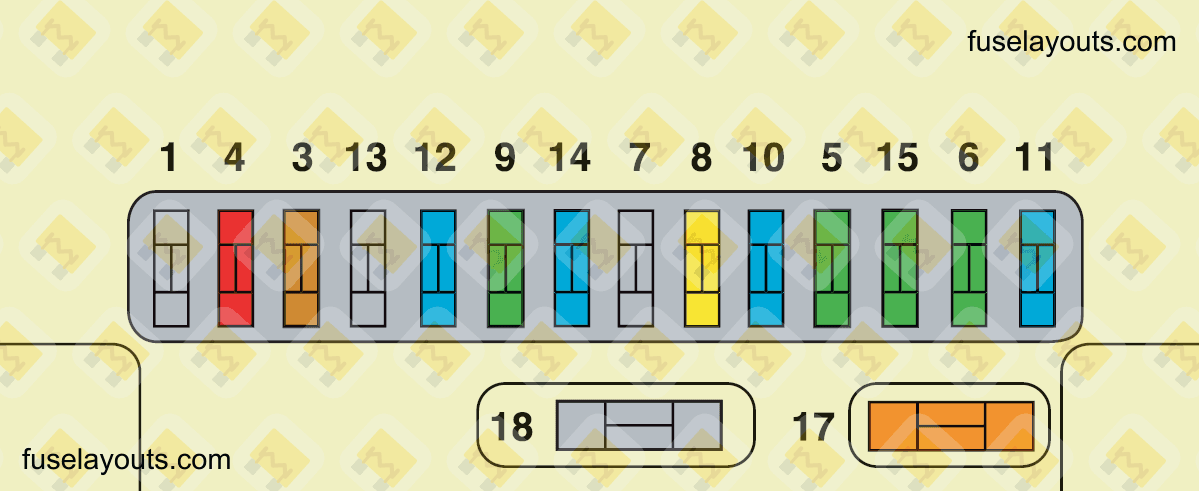

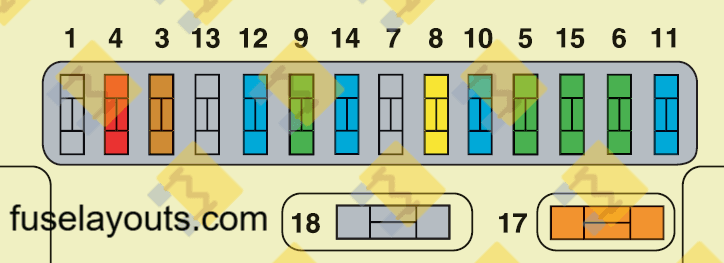

Dashboard Fuses
Diagram

Location

Where to find

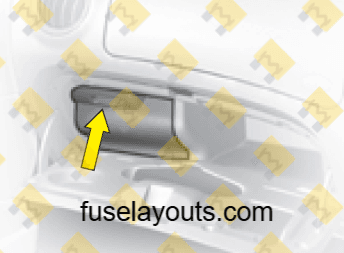

- •The fuse box is located in the lower glovebox compartment
- •To access the fuses, open the glove box, pull the handle on the fuse box cover.
| No. | Amp | Description |
|---|---|---|
| F1 | - | Unknown |
| F3 | 5A | Airbags |
| F4 | 10A | Diagnostic socket – Particle filter additive – Clutch switch – Steering angle sensor |
| F5 | 30A | Rear window – Sun roof |
| F6 | 30A | Screen wash |
| F7 | - | Unknown |
| F8 | 20A | Digital clock – Controls at the steering wheel – Radio – Display |
| F9 | 30A | Cigar-lighter – Digital clock – Interior lamps – Vanity mirror |
| F10 | 15A | Alarm |
| F11 | 15A | Ignition switch – Diagnostic socket |
| F12 | 15A | Airbag ECU – Rain and brightness sensor |
| F13 | - | Unknown |
| F14 | 15A | Parking assistance – Instrument panel – Air conditioning – Bluetooth® telephone |
| F15 | 30A | Central locking – Deadlocking |
| F17 | 40A | Heated rear screen |
| F18 | SHUNT | CUSTOMER PARK SHUNT |

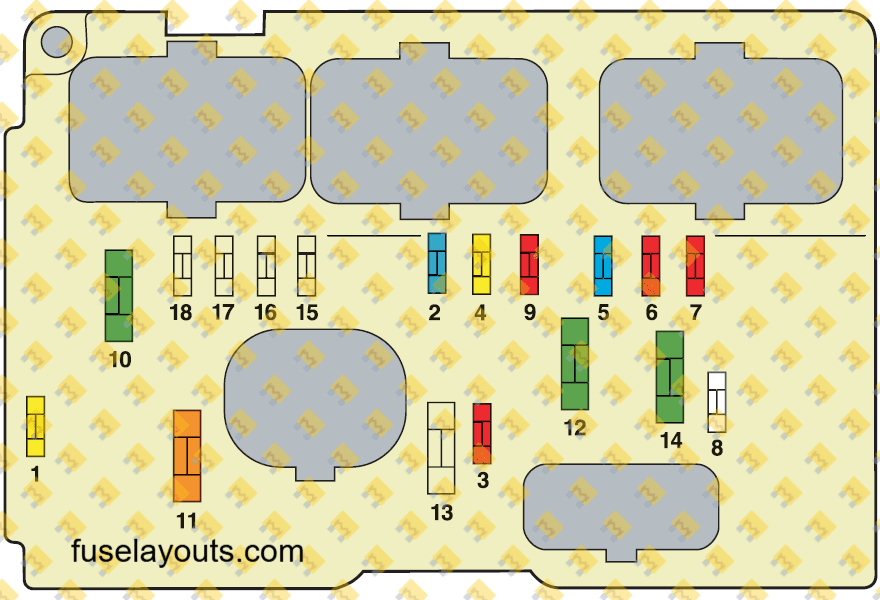

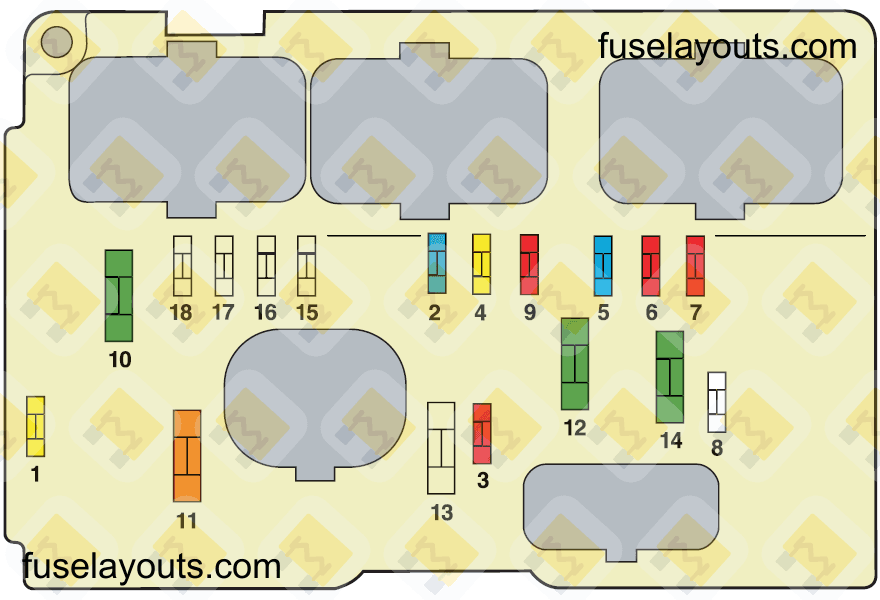

Fuses under the bonnet
Diagram

Location

Where to find

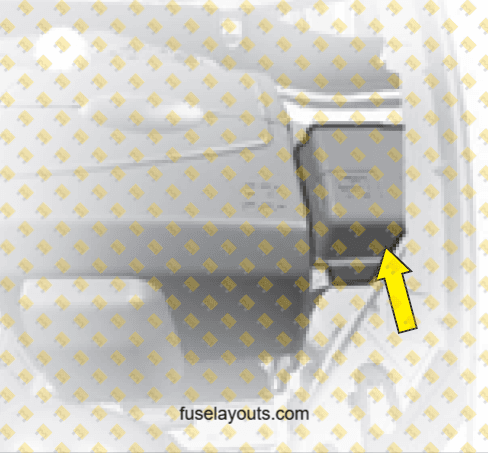

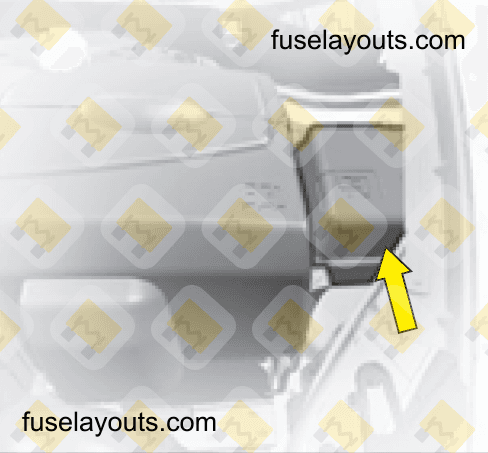

- •To access the fusebox located in the engine compartment, remove the battery cover and detach the lid.
- •After a repair, take care to reclose the cover.
| No. | Amp | Description |
|---|---|---|
| F1 | 20A | Water-in-diesel-fuel sensor |
| F2 | 15A | Horn |
| F3 | 10A | Screen wash |
| F4 | 20A | Headlamp wash |
| F5 | 15A | Fuel pump |
| F6 | 10A | Power steering |
| F7 | 10A | Coolant level sensor |
| F8 | 25A | Starter |
| F9 | 10A | ECUs (ABS, ESP) |
| F10 | 30A | Engine control actuators (Ignition coil, Electrovalve, Oxygen sensor, Injection) – Canister purge |
| F11 | 40A | Air blower |
| F12 | 30A | Windscreen wiper |
| F13 | - | Unknown |
| F14 | 30A | Air pump (petrol version) – Diesel fuel heater |
| F15 | - | Unknown |
| F16 | - | Unknown |
| F17 | - | Unknown |
| F18 | - | Unknown |
Found an error?
If you noticed an error in the fuse description or diagram, let us know! Help us improve the database.
Citroën C3 I Facelift (2005-2009)
Exterior Design
Externally, the C3 adopted a bolder appearance. The front end was reshaped with a newly designed bumper and a larger lower air intake, giving the car a more solid stance. The grille was refined with slimmer openings, and the license plate was repositioned for a cleaner layout. At the rear, the car received redesigned taillights featuring clear central sections, enhancing its modern look. Depending on trim level, protective black moldings were fitted to the bumpers and doors.Interior
The interior also underwent noticeable improvements. A redesigned dashboard with higher-quality materials replaced the previous layout, while a more contemporary instrument cluster improved legibility for the driver. Light metallic gray accents were added around the center console and air vents, and both front and rear door panels were completely reworked. The steering system was refined as well, offering increased firmness at higher speeds for better stability.Engines and Drivetrain
From a mechanical standpoint, the entire engine lineup was updated to comply with Euro 4 emission standards, which became mandatory across the European Union in 2005. A new 1.6-liter HDi turbo-diesel engine producing 110 PS joined the range. The five-speed manual gearbox remained standard, while a four-speed automatic transmission was available on selected versions.Despite the arrival of a new generation, Citroën continued offering the original C3 in several markets. It was sold under various names depending on the country, such as C3 Classic or C3 First.
Warning
Never use a higher amperage fuse!
Tip
Spare fuses are often in the box cover.
